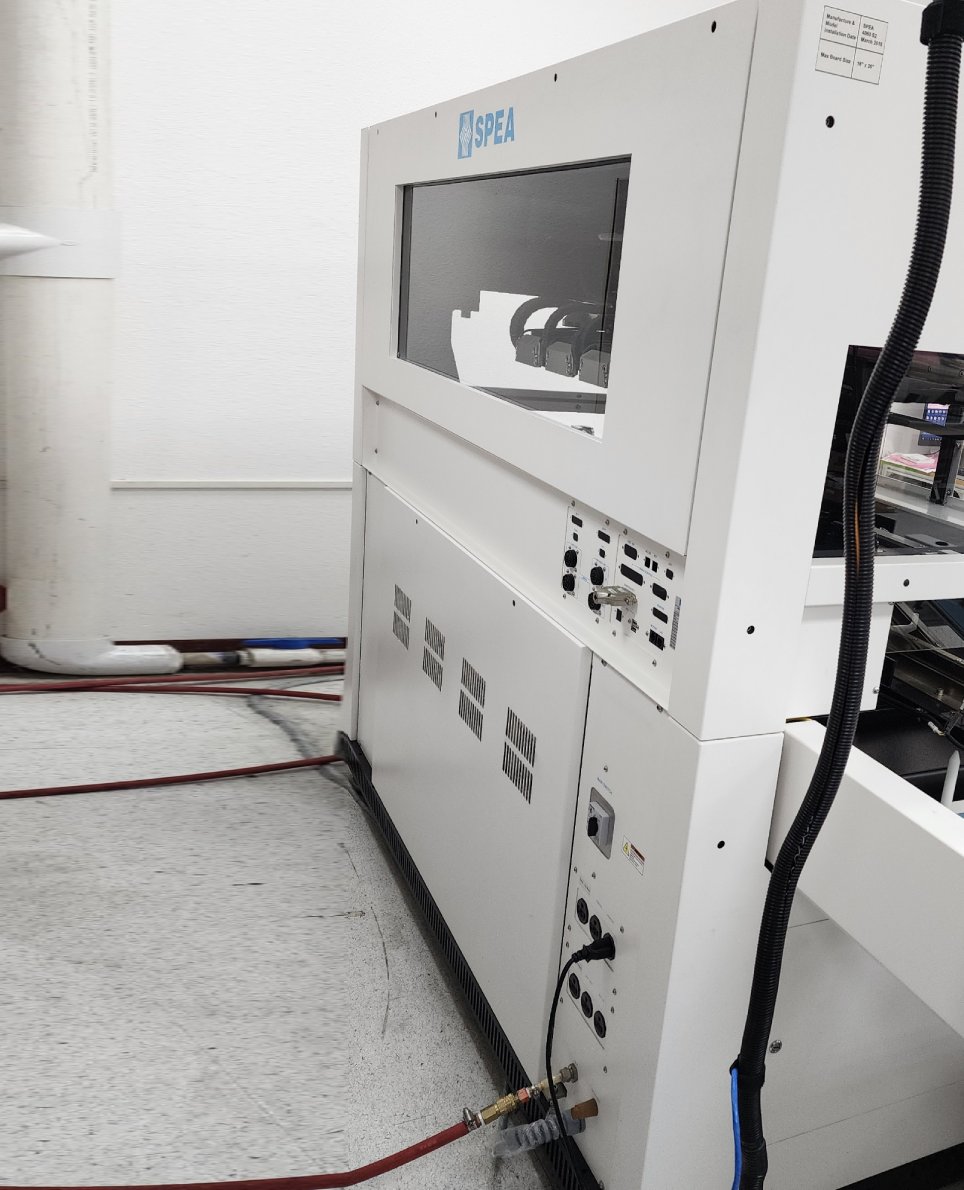

SPEA 4060 S2 Dual Side In-line prober
- Make: SPEA
- Model: 4060 S2 Dual Side In-line prober
- Vintage: 2019
- Power: 208, 3ph, 50/60hz
- FLA: 29
- Weight: 1600kgs/3530lbs
- Footprint: 5'7"L x 4'2"W x 5'8"H

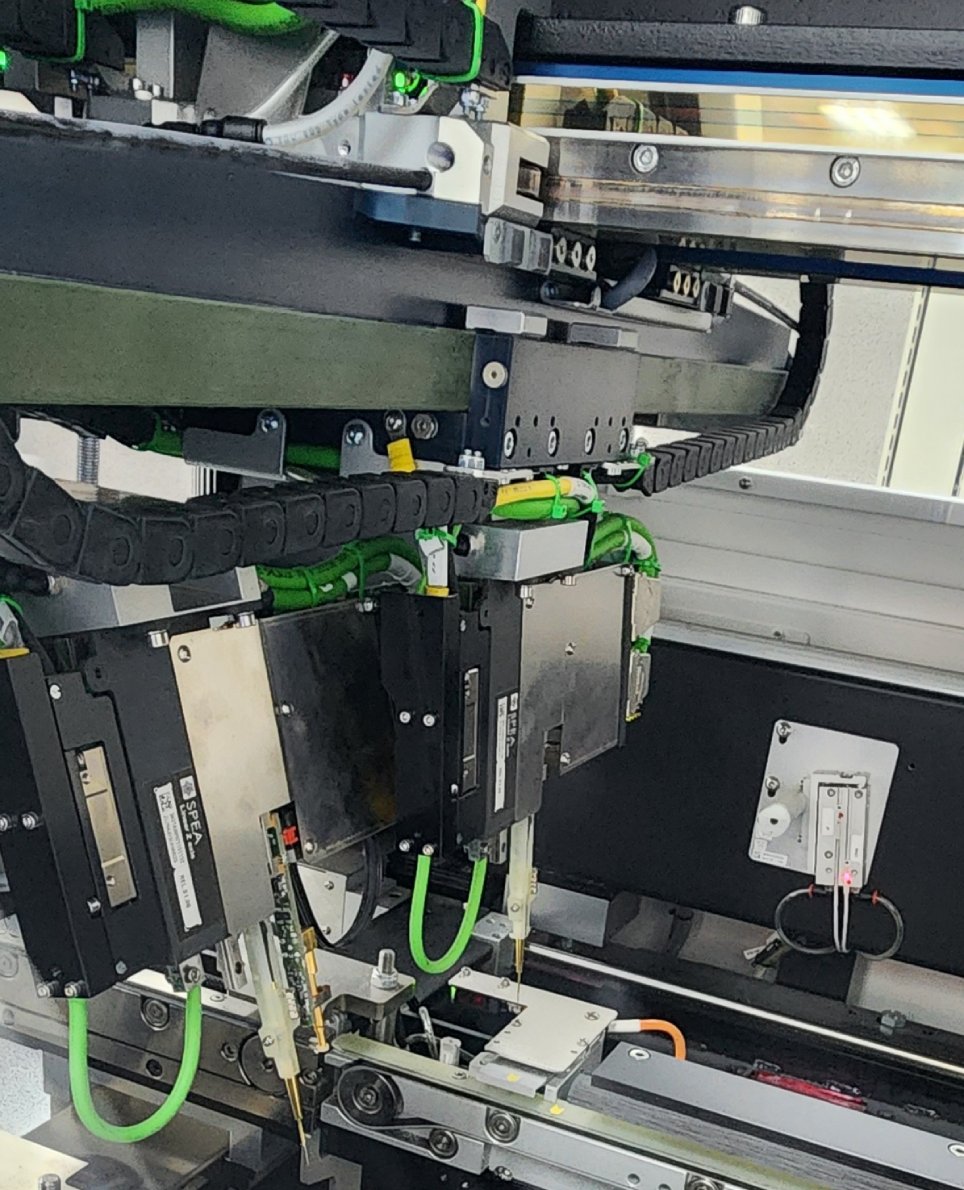

- 4 top/2 bottom Flying heads with Signal Processing at the heads
- Linear Motors with Optical Encoders
- Dual Drivers (10 and 50V)
- Leonardo Software Development Suite with ALL CAD importers
- Runpack License
- INLINE Load
- Standard and Soft Touch Technology
- Open Pin Suite
- Removable Shuttle Loader
45001328.115 4060IL 100 4060IL 100; Board Production Test; 4x Flying Probe Tester; In-Line Loading; 20″x16″
45019690.162 DK 115 Base diagnostic tool; FP s2 compatible
45018049.158 ESV 100 Electrical & pneumatic energy saving function

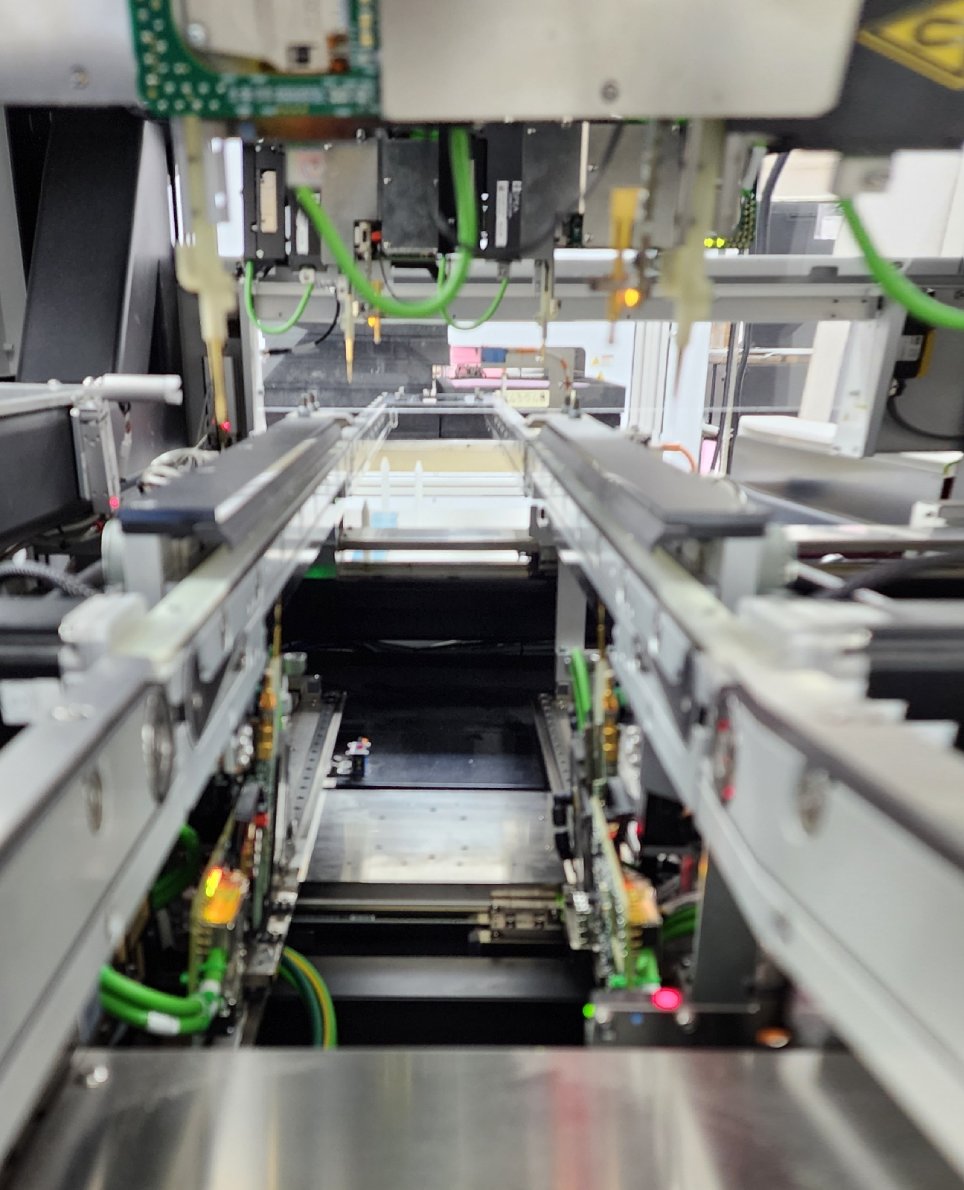

45001812.090 IBL 420 Pass through in-line conveyor; input buffer
45014903.116 JCS 10 Open Pin Test; Junction Scan

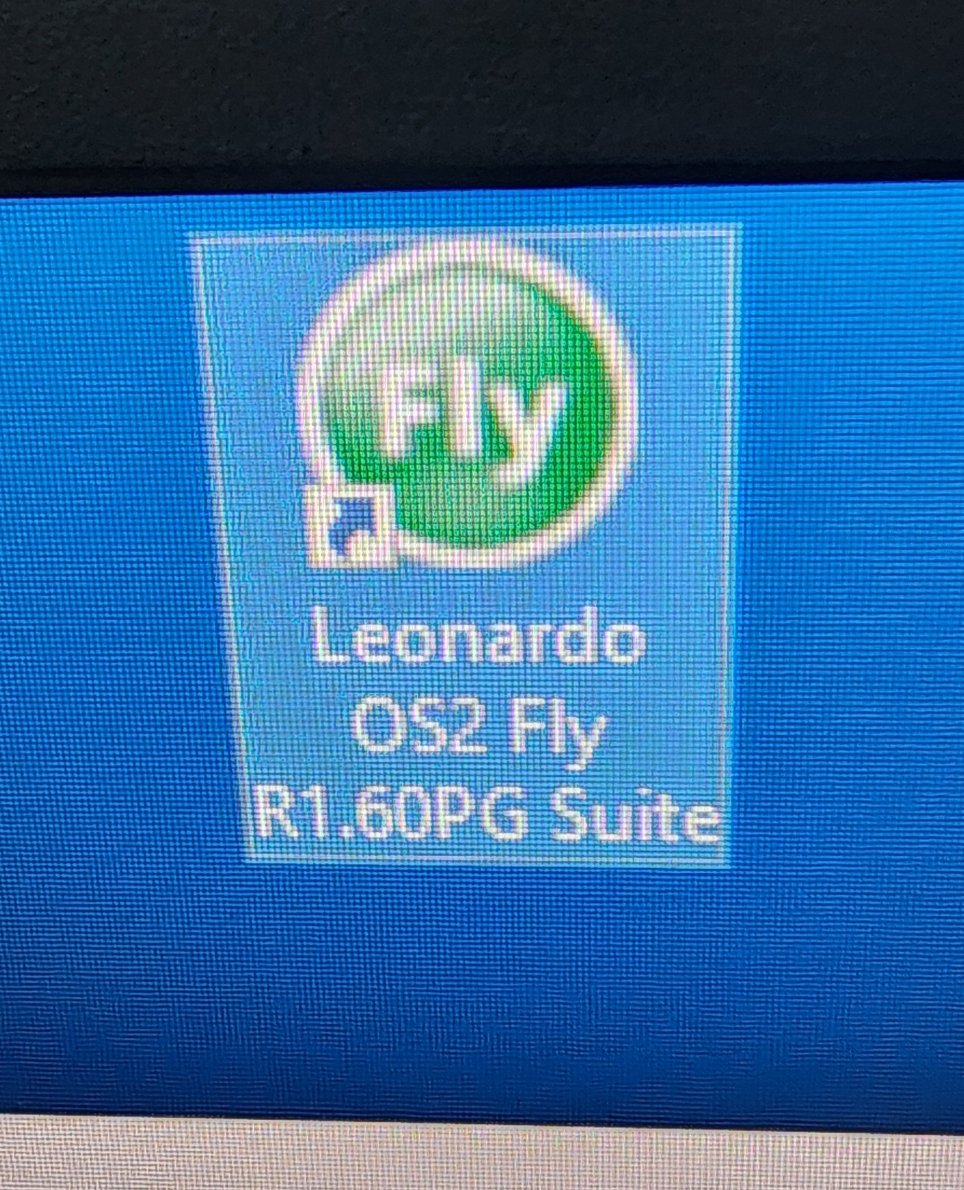

45004730.097 L2FLY Leonardo OS2 FLY Execution [1 license] R1.50 (Current: Leonardo OS2 Fly R1.60PG Suite)
45018995.215 PRT 60 Internal graphic printer; 24 lines/sec; USB
45012506.106 SIU 100 Smema interface unit; 4060s2 compatible
45001819.146 YAICT 320FP, ICT instruments unit; dual 4Q DC source, ±10V/±100mA, ±50V/±100mA; DVM; Counter; Active guard; 8 row; WFG
45001833.112 BSMH 260 Bottom Side Moving Heads; 2x heads; optical alignmentmodule
45001838.152 PKB 400 2x Linear Z axes for Bottom Side Moving Heads
45014442.106 CKB 210 2x Flying Bottom Support Finger
45013054.100 CERT 004 Calibration Certificate according to ISO 9001 and ISO 10012
45011706.113 SP 456 4060 Packing Box; Air Shipment Pallet
45001496.154 STO 100 Resistance-based Short Test
45001820.081 OPS 450 ElectroScan; Electrical Field Meter Top; Head 1-4
45001821.089 OPS 550 ElectroScan; Electrical Field Meter Bottom; Head 5
45001822.097 OPS 560 ElectroScan; Electrical Field Meter Bottom; Head 6
45016657.175 RSL 713 Removable shuttle loader; 6+6 board locking mechanism; max test area 300x440mm; bottom side open. Requires IBL 420
45001824.113 PRD USA S2 USA UL standard setup
45001837.144 SPS 15 System power supply; three phase; 208V
45004734.129 LEO2 GOLD FLY Leonardo OS2 Suite Fly – Gold – R1.50
45018061.108 SSD 20 SPEA software dongle for LAN installation
- Options:
45001498.170 STZ 100 Shorts Test Impedance based
45016233.105 AS 3 Test area extension to 685x490mm/26.96″x19.29″ top side; BSMH and RSLcompatible
45016859.213 EXS 100 Extra Size UUT Test > 685mm length/26.96″
45016800.096 OPT 400 Automatic Optical Inspection, alignment, rotation, presence, optical character verify
