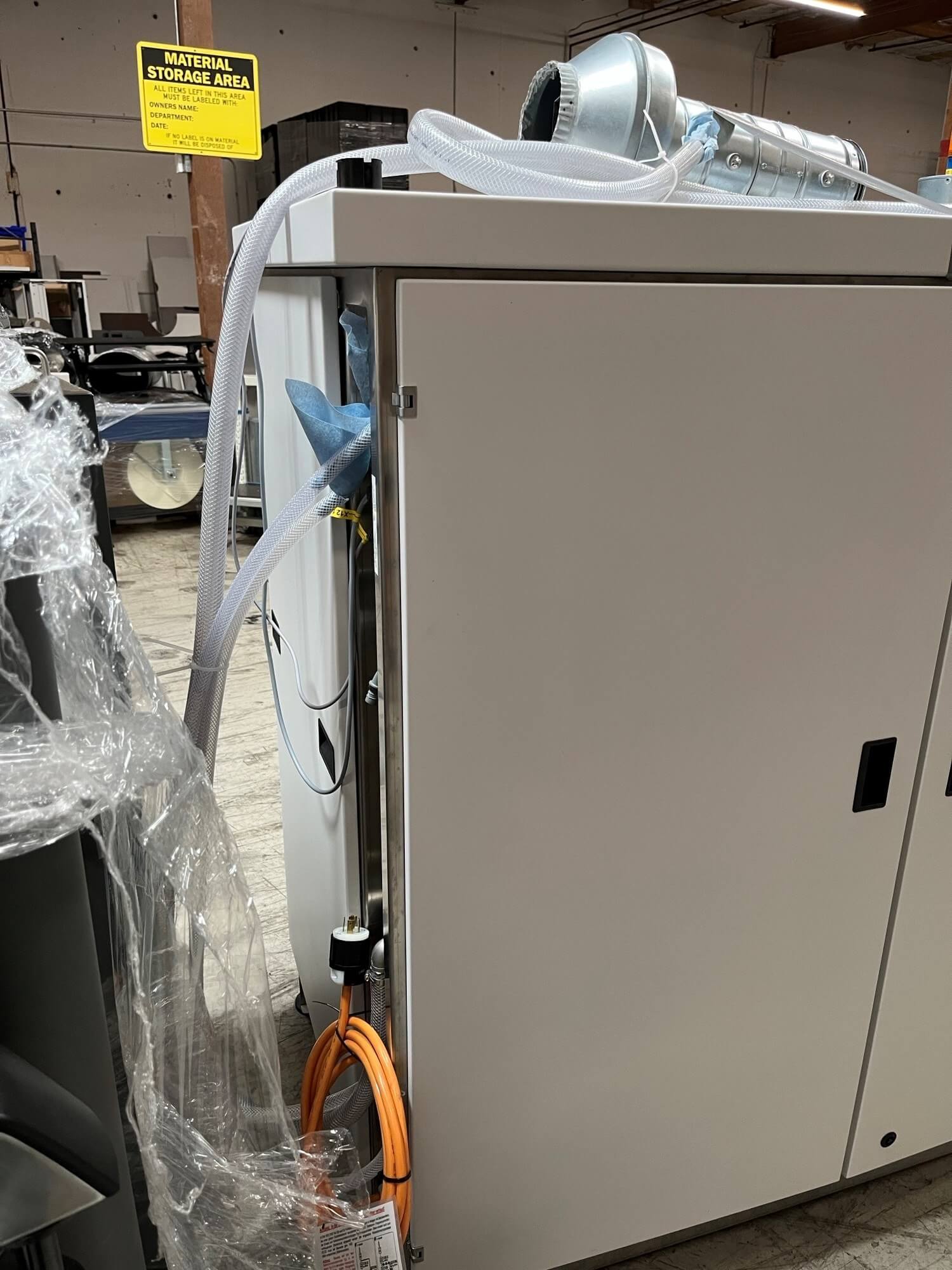

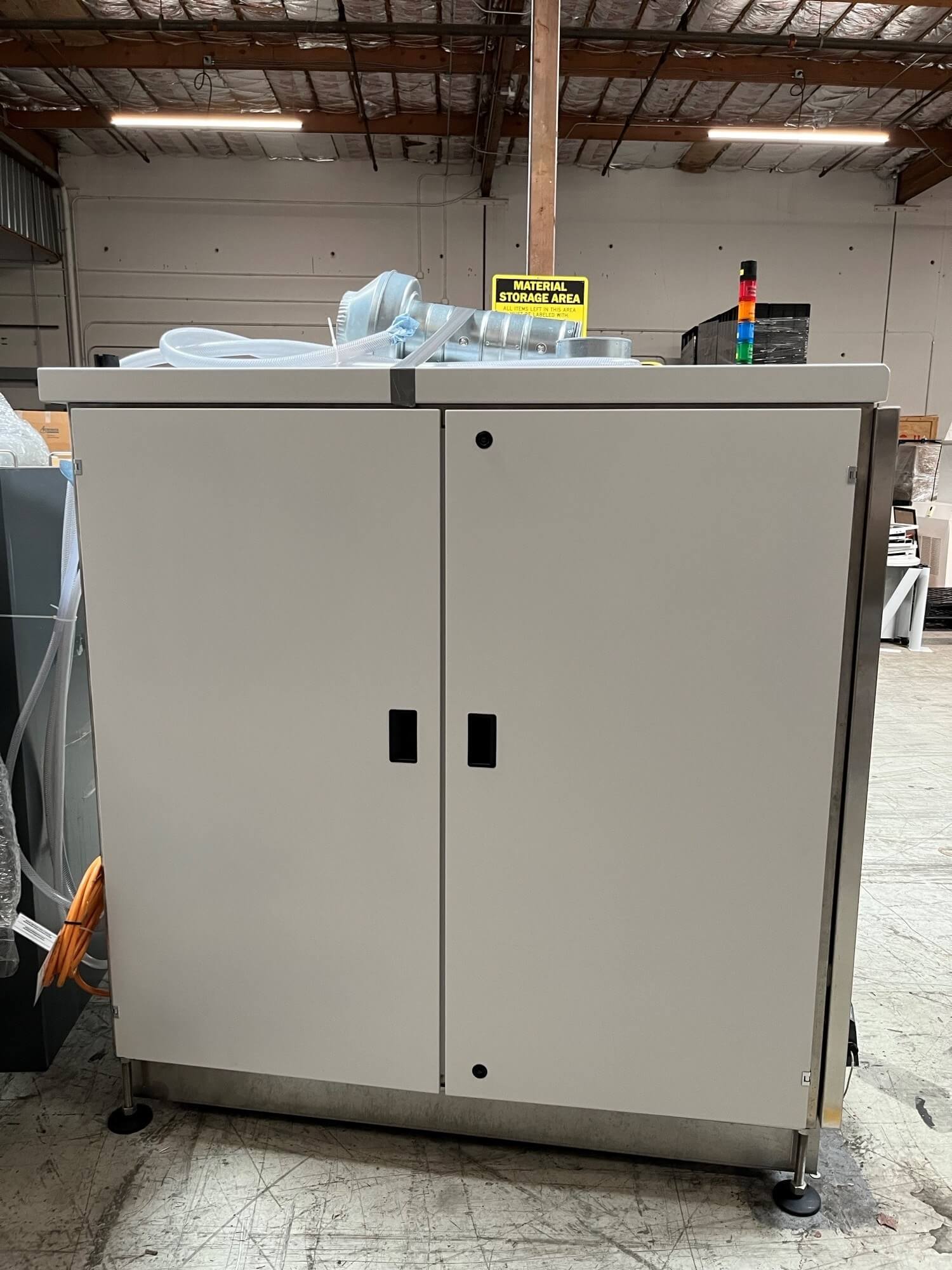

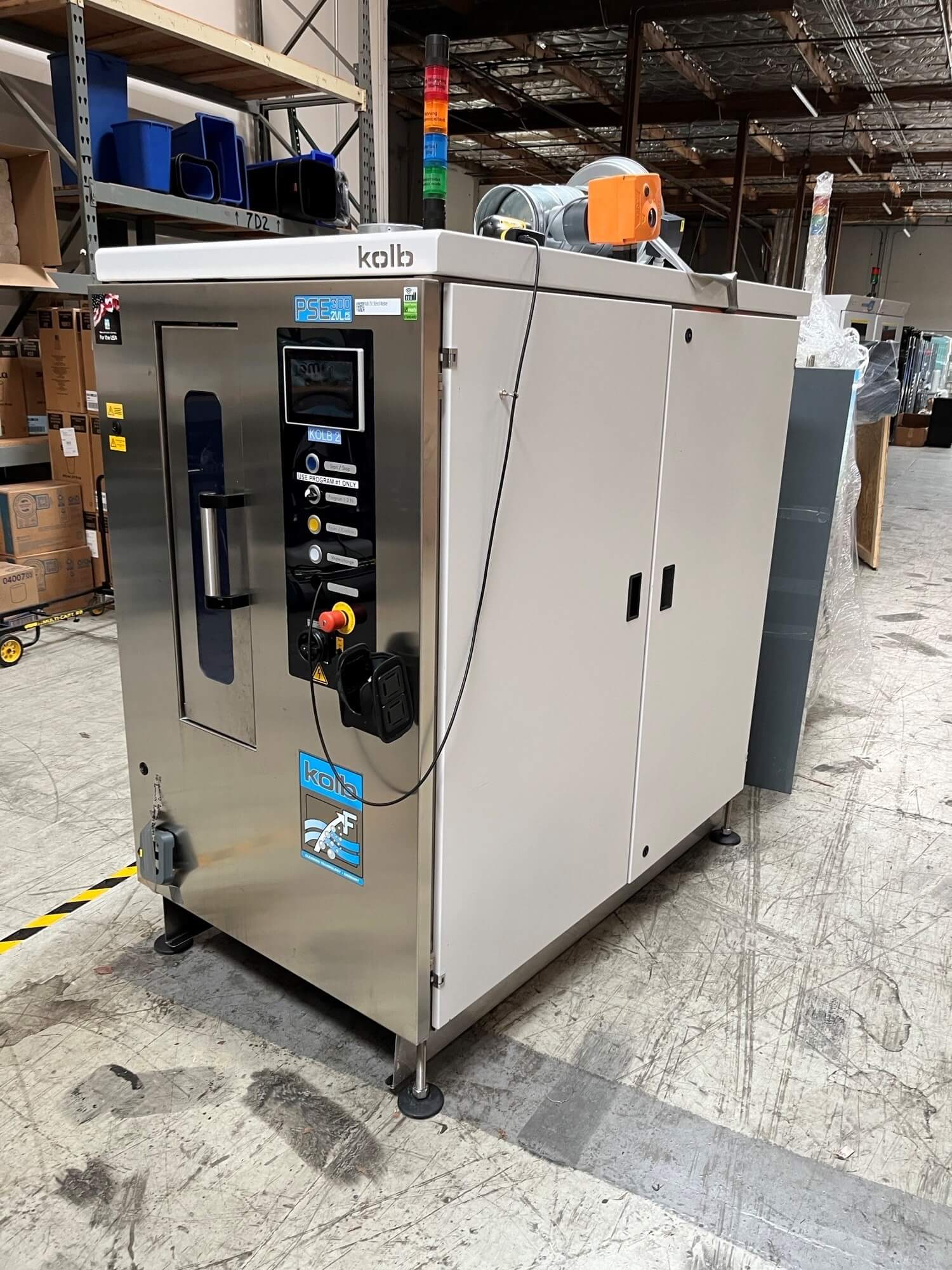

KOLB PSE300-2VL V2
- Make: KOLB
- Model: PSE300-2VL V2
- Vintage: 2020
- Description: Stencil Cleaner
Two tank system with two separate circuits
Comfortable push-one-button operation
Fully automatic 4step process: cleaning, MediumWipe®, rinsing (tap water), CWA® supercharger compression drying
Vertical rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
Short cycle times due to placing the cleaning goods close to the spray rotors
Permanent filtration
ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
Water-free operation possible: Instead of water the system can use a suitable cleaning / rinsing detergent for rinsing
Process and service intervals PLC controlled
Event issuing and software control via high resolution 7″ display with capacitative multi-touch
All safety relevant devices are standard features in the basic system configuration
HT version for high temperature cleaning and rinsing up to 80 °C (176 °F) available
Extremely compact – very small footprint
Specifications
– Technology base kolb PowerSpray®
– Control system (Display size) PLC – Eaton (7“)
– Standard capacity (per process cycle) 21 eurocards or one coating carrier, screen, stencil, (PCB-) carrier/ washing frame
– Process chamber dimensions W 350 mm • D 980 mm • H 920 mm
– Clamping space for PCBA, Misprints etc. H 730 mm x W 525 mm
– Max. stencil, carrier, washing frame size H 950 mm x W 780 mm
– Circuits 2+ Cleaning, Rinsing tap water / Rinsing DI-water (combined)
– Volume Tank A 75 l • Cleaning
– Volume Tank B/C 75 l • Rinsing tap water / Rinsing DI-water (combined)
– Max. cleaning temperature 50 °C (122 °F)
– Filtration Up to three stages – 1. Full flow coarse filter < 2 mm, 2. Cascaded sediment filter inside the tank, 3. 20“ fine filter (1 – 100 µm – process dependent)
– Drying System CWA® supercharger
– Drying temperature range Compressed warm air
– Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
– Power consumption 4 kW
– Supply connection 1 (tap water) 1/2“
– Supply connection 3 (Compressed Air) 8 mm (87 – 116 psi – 100 l / min)
– Empty Weight 570 kg (1,257 lbs)
– Footprint 950 mm x 1600 mm (37.40″ x 62.99″)
