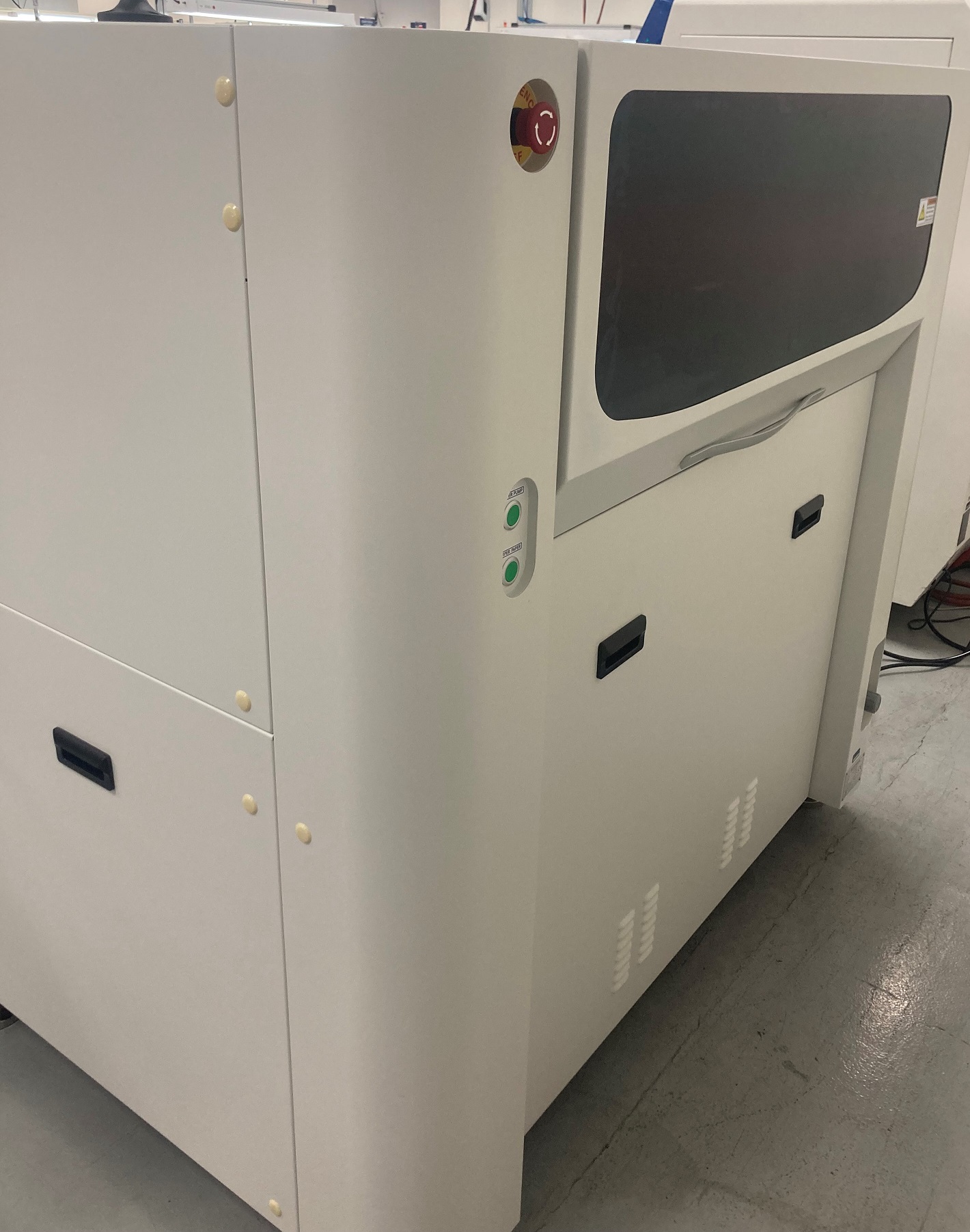

ESE US-8500X
- Make: ESE
- Model: US-8500X
- Vintage: 8/2021
- Never used: Powered up by technician to dial machine in but never ran any boards. Like new.
- Power: 220v, 50/60hz, 15A, single phase
- Weight: 950kg/2100lbs
- Quick Auto tool
- PCB size: 70mm x70mm to 850mm x610mm.
- PCB size: 2.75" x 2.75" to 33.46" x 24.40"
- Stencil size: 736mm, 800mm, 850mm, 980mm
- Printing speed: 5-250mm/sec
- Printing force: 3-25kgf
- Cycle time: 13 sec
- Alignment accuracy: +/-12.5um @ 3 sigma
- Printing repeatablity: +/-25um @ 3 sigma
